MDT 180 B

MDT 180 B

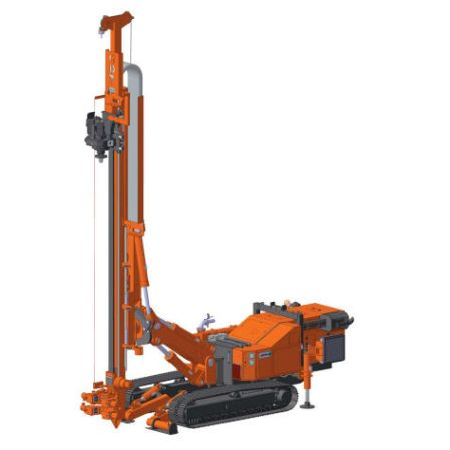

MDT 180 B is in the middle segment of multidirectional drill rigs, it is designed especially for heavy job-site works and is characterized by excellent manoeuvrability, reliability and high productivity level - all this tanks to adoption of many innovative technical solutions.
Active and passive safety devises were foreseen at the design stage to ensure maximum safety to the operator and other rig personnel.
Design choices foreseen for la MDT 180 B were made in view of the necessities of the job site, to make possible carrying out different types of work using the same machinery.
Therefore, using this drill rig it is possible to carry out drilling works like consolidated piles through jet grouting consolidation method, micropiles, anchors and consolidation tie rods.

Peculiarities, versatility and power

• High stability on the way and during placing to the advantage of safety and manoeuvrability, even when the rig is equipped with automatic loader High stability on the way and during placing to the advantage of safety and manoeuvrability, even when the rig is equipped with automatic loader, capable to operate at any inclination angle, with storage capacity of 3 drill rods 4,5 m long and max. diameter of 140mm, also helicoidal ones, or with lattice extensions installed for Jet Grouting injections for maximum useful drilling depth of 21m.
• Automatic loader can be installed with lattice extensions useful drilling depth 20 m in order to obtain total useful drilling depth 33,5 m.
• 200 hp engine for excellent performance and application of rotary head of 32000 Nm, double rotary head and Top Hammer. The engine is equipped with electronic Exchange that always keeps the engine functioning under control, giving alarm in case of abnormalities.
• Possibility to install a special mast extension for rotary stroke of 6 m, on request.
• Remote control panel connected with cable, or radio control upon request, for overall vision of the work area and considerable speed up of movement and placing operations, practicable in most safe conditions, especially during loading and unloading operations. All the functions of traverse-placing, mast positioning and drilling process are remotecontrolled from remote electric control panel with cable or radio control.
• Automatic power division system in order to improve the drilling rig's performance and maintain productivity at a high level.
• Automatic devices' application facilitates the use of the rig even by less experienced personnel.
• Ample oversizing of structural parts in view of prevention of possible critical conditions due to possible operator's mistakes.
• Technical solutions suited to guarantee rock-bottom operating costs and maximum easiness of maintenance servicing.

The drill rig meets the CE norm, the UNI EN 791 in particular.

Specifications subject to change without notice. The global diffusion of the product illustrated hereby imposes, because the different norms, the use of indicative - hence not binding - images and illustrations.
